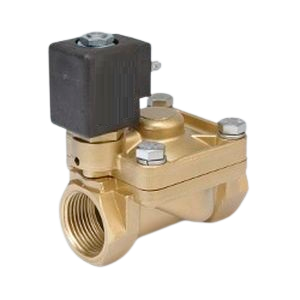

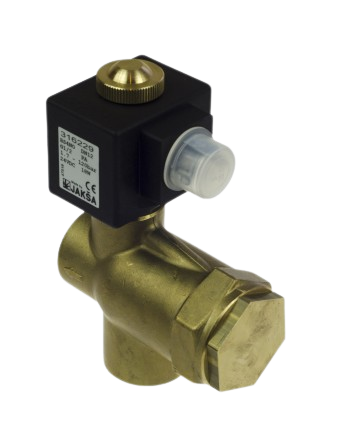

ELECTROVALVULA JAKSA
TKPRES suministra válvulas de muy alta presión , alto caudal , vacío , para vapor o para criogenia , de 1/4" hasta las 2", en acero inoxidable, latón, acero al carbono y plásticas .
- Sistema de calidad ISO 9001:2008
- Certificado ATEX 2014/34/EU
- Marcado "CE" Directivas 2004/108/EC y 2006/95/EC
Vapor Gas Agua Vacío Criogénico Alta presión Alta temperatura
Modelos:
2/2 Acción directa
Pilotada
Certificaciones
CE PED
ATEX
FDA
EAC
de materiales 3.1
Conexiones
Roscadas de 1/4" hasta 8"
Bridadas
Presiones:
de vacío hasta 1000 bar!!!!
Materiales
Latón
Acero Inoxidable
Plástico
Temperatura trabajo
de
-196ºC a
+300ºC
- Internal parts: stainless steel
- Seals: NBR, EPDM, FPM, PTFE
- Fluid temperature: -10°C to +90°C (NBR); +130°C (EPDM, FPM, PTFE)
- Ambient temperature: +55°C max
- Viscosity: 21 mm2/s max.
- Response time: 10 to 20 ms
- Voltage: 230, 115, 48, 24 V AC / 24, 12 V DC
- Duty cycle: continuous (ED100%)
- Cycling rate: 1000 cycles/min max
- Electrical protection:
- IP65 (with plug to ISO 6952 / ISO 4400)
OPTIONS:
• EEx me II explosion-proof coils
• INOX body
• NPT ports
• Other versions on request.
- Internal parts: stainless steel
- Seals: NBR, EPDM, FPM
- Fluid temperature: -10°C to +90°C (NBR); +130°C (EPDM, FPM)
- Ambient temperature: +55°C max
- Viscosity: 21 mm2/s max.
- Response time: 10 to 60 ms
- Voltage: 230, 115, 48, 24 V AC / 24, 12 V DC
- Duty cycle: continuous (ED100%)
- Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400)
- Optional:
- EEx me II explosionproof coils
- INOX body
- NPT ports
- Internal parts: stainless steel
- Seals: NBR, EPDM, FPM
- Fluid temperature: -10°C to +85°C (NBR); +100°C (EPDM, FPM)
- Ambient temperature: +55°C max
- Viscosity: 21 mm2/s max.
- Response time: opening 0.05 - 1 s; closing 0.5 - 4 s
- Voltage: 230, 115, 48, 24 V AC; 24, 12 V DC
- Duty cycle: continuous (ED100%)
- Cycling rate: 10 - 100 cycles/min
- Electrical protection:
- IP65 (with plug to ISO 6952 / ISO 4400)
OPTIONS:
• EEx me II explosionproof coils
• INOX body
• NPT ports
• Other versions on request.
- Internal parts: brass, stainless steel
- Seals: PA, PTFE
- Fluid temperature: -10°C to +100°C (PTFE); +90°C (PA)
- Ambient temperature: +55°C max
- Viscosity: 21 mm2/s max.
- Response time: 0.1 - 1 s
- Voltage: 230, 115, 48, 24 V AC; 24, 12 V DC
- Duty cycle: continuous (ED100%)
- Cycling rate: 10 - 100 cycles/min
- Electrical protection:
- IP65 (with plug to ISO 6952 / ISO 4400)
OPTIONS:
• EEx me II explosionproof coils
• NPT ports
• Other versions on request.
- Internal parts: stainless steel
- Seals: NBR, EPDM, FPM
- Fluid temperature: min -10°C; max +85°C (NBR); +100°C (FPM); +130°C (EPDM)
- Ambient temperature: +55°C max
- Viscosity: 21 mm2/s max.
- Response time: opening 0.1 - 1 s; closing 0.5 - 5 s
- Voltage: 230, 115, 48, 24 V AC; 24, 12 V DC
- Duty cycle: continuous (ED100%)
- Cycling rate: 10 - 100 cycles/min
- Electrical protection:
- IP65 (with plug to ISO 6952 / ISO 4400)
OPTIONS:
• EEx me II explosionproof coils
• INOX body
• NPT ports
• Other versions on request.
2/2 AND 3/2 SOLENOID VALVES FOR STEAM 1/4" - 2"
- Internal parts: stainless steel
- Seals: EPDM, PTFE
- Ambient temperature: +55°C max
- Voltage: 230, 115, 48, 24 V AC / 24, 12 V DC
- Duty cycle: continuous (ED100%)
- Electrical protection:
- IP65 (with plug to ISO 4400)
2/2 SOLENOID VALVES FOR GAS SERVICE 1/4" - 2"
- Internal parts: stainless steel
- Seals: NBR
- Fluid temperature: -10°C to +60°C
- Ambient temperature: max +50°C
- Voltage: 230, 115, 48, 24 V AC / 24, 12 V DC (Types PV and PVNC 230 V AC only)
- Electrical protection:
- IP65 (with plug to ISO 4400)
2/2 SOLENOID VALVES FOR VACUUM SERVICE 3/8" - 2"
- Internal parts: stainless steel
- Fluid temperature: -10°C to +90°C
- Ambient temperature: max +60°C
- Viscosity: max 21 mm2/s
- Response time: 5 - 120 ms
- Voltage: 230, 115, 48, 24 V AC / 24, 12 V DC
- Duty cycle: continuous (ED100%)
- Electrical protection:
- IP65 (with plug to ISO 4400)
2/2 SOLENOID VALVES FOR CRYOGENIC SERVICE 1/4" - 1"
- Internal parts: stainless steel
- Seals: PTFE
- Fluid temperature: -196°C to +90°C
- Ambient temperature: max +50°C
- Viscosity: max 21 mm2/s
- Response time: 8 - 40 ms (closing)
- Voltage: 230, 115, 48, 24 V AC / 24, 12 V DC
- Duty cycle: continuous (ED100%)
- Cycling rate: 10 to 100 cpm
- Electrical protection:
- IP65 (with plug to ISO 4400)
SOLENOID VALVES FOR COMPRESSED AIR 1/4" - 2"
- Internal parts: stainless steel
- Seals: FPM, PTFE
- Fluid temperature: -10°C to +110°C
- Ambient temperature: max +55°C
- Viscosity: max 21 mm2/s
- Response time: closing 10 - 30 ms
- Voltage: 230, 115, 48, 24 V AC / 24, 12 V DC
- Duty cycle: continuous (ED100%)
- Cycling rate: 10 - 100 cpm
- IP rating:
- IP65 (with plug to ISO 4400)
OPTIONS:
• EEx me II explosion-proof coils
• NPT ports
• Other versions on request
- Body: Brass or INOX (AISI 303)
- Seals: PA (polyamide), PTFE, PU (polyurethane), PEEK
- Fluid temperature: -10°C to +100°C (PTFE); +90°C (PA); +70°C (PU)
- Ambient temperature: max +55°C
- Viscosity: max 21 mm2/s
- Voltage: 230, 115, 48, 24 V AC; 24, 12 V DC
- Duty cycle: continuous (ED100%)
- Cycling rate: 10 - 100 cpm
- Electrical protection:
- IP65 (with plug to ISO 4400)
•500 bar demanding applications and excellent sealing solenoid valves
•500 bar all-round use solenoid valves
•200 bar small-size and all-round use solenoid valves
